您的位置: 首頁 -> 產品展示 -> 同步帶

[查看原圖片] [返回]

[上一個:東莞齒型皮帶MXL] [下一個:齒型皮帶XL型]

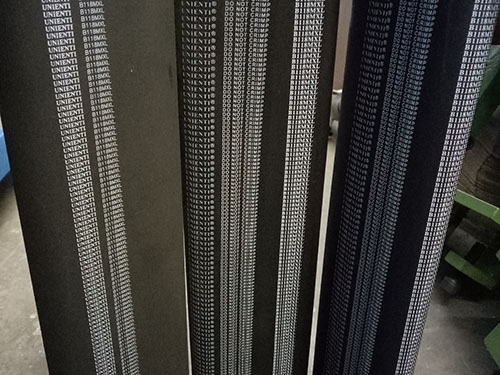

優質齒型皮帶MXL

詳情說明

規格	長度	齒數	規格	長度	齒數	規格	長度	齒數	規格	長度	齒數
B104MXL	211.328	104	B195MXL	396.24	195	B354MXL	719.328	354	B705MXL	1432.56	705
B105MXL	213.36	105	B200MXL	406.4	200	B356MXL	723.392	356	B726MXL	1475.232	726
B106MXL	215.392	106	B205MXL	416.56	205	B358MXL	727.456	358	B750MXL	1524.000	750
B107MXL	217.424	107	B210MXL	426.72	210	B360MXL	731.52	360	B760MXL	1544.32	760
B109MXL	221.488	109	B212MXL	430.784	212	B365MXL	741.68	365	B762MXL	1548.384	762
B110MXL	223.52	110	B216MXL	438.912	216	B371MXL	753.872	371	B776MXL	1576.832	776
B112MXL	227.584	112	B220MXL	447.04	220	B372MXL	755.904	372	B805MXL	1635.76	805
B114MXL	231.648	114	B221MXL	449.072	221	B380MXL	772.16	380	B906MXL	1840.992	906
B115MXL	233.68	115	B222MXL	451.104	222	B388MXL	788.416	388	B930MXL	1889.76	930
B117MXL	237.744	117	B224MXL	455.168	224	B390MXL	792.48	390	B955MXL	1940.56	955
B118MXL	239.776	118	B225MXL	457.2	225	B397MXL	806.704	397	B1012MXL	2056.384	1012
B120MXL	243.84	120	B228MXL	463.296	228	B400MXL	812.8	400	B1060MXL	2153.92	1060
B122MXL	247.904	122	B229MXL	465.328	229	B402MXL	816.864	402	B1076MXL	2186.432	1076
B123MXL	249.936	123	B230MXL	467.36	230	B408MXL	829.056	408	B1078MXL	2190.496	1078
B125MXL	254	125	B232MXL	471.424	232	B412MXL	837.184	412	B1088MXL	2210.816	1088
B126MXL	256.032	126	B235MXL	477.52	235	B419MXL	851.408	419	B1137MXL	2310.384	1137
B127MXL	258.064	127	B236MXL	479.552	236	B420MXL	853.44	420	B1166MXL	2369.312	1166
B128MXL	260.096	128	B239MXL	485.648	239	B421MXL	855.472	421	B1250MXL	2540	1250
B129MXL	262.128	129	B240MXL	487.68	240	B424MXL	861.568	424	B1380MXL	2804.16	1380
B130MXL	264.16	130	B243MXL	493.776	243	B425MXL	863.6	425	B1392MXL	2828.544	1392
B131MXL	266.192	131	B245MXL	497.84	245	B427MXL	867.664	427	B1463MXL	2972.816	1463
B132MXL	268.224	132	B248MXL	503.936	248	B431MXL	875.792	431	B1516MXL	3080.512	1516
B134MXL	272.288	134	B249MXL	505.968	249	B434MXL	881.888	434	B1520MXL	3088.64	1520
B135MXL	274.32	135	B250MXL	508	250	B436MXL	885.952	436	B1778MXL	3612.896	1778
B136MXL	276.352	136	B251MXL	510.032	251	B440MXL	894.08	440	B1806MXL	3669.792	1806
B137MXL	278.384	137	B256MXL	520.192	256	B442MXL	898.144	442	B2044MXL	4153.408	2044
B138MXL	280.416	138	B262MXL	532.384	262	B447MXL	908.304	447
B139MXL	282.448	139	B265MXL	538.48	265	B448MXL	910.336	448
B140MXL	284.48	140	B267MXL	542.544	267	B453MXL	920.496	453
B142MXL	288.544	142	B271MXL	550.672	271	B458MXL	930.656	458
B144MXL	292.608	144	B273MXL	554.736	273	B463MXL	940.816	463
B145MXL	294.64	145	B275MXL	558.8	275	B466MXL	946.912	466
B148MXL	300.736	148	B280MXL	568.96	280	B472MXL	959.104	472
B150MXL	304.8	150	B285MXL	579.12	285	B475MXL	965.2	475
B151MXL	306.832	151	B288MXL	585.216	288	B482MXL	979.424	482
B154MXL	312.928	154	B290MXL	589.28	290	B487MXL	989.584	487
B155MXL	314.96	155	B295MXL	599.44	295	B488MXL	991.616	488
B156MXL	316.992	156	B298MXL	605.536	298	B490MXL	995.68	490
B158MXL	321.056	158	B300MXL	609.6	300	B497MXL	1009.904	497
B160MXL	325.12	160	B310MXL	629.92	310	B498MXL	1011.936	498
B162MXL	329.184	162	B312MXL	633.984	312	B500MXL	1016	500
B163MXL	331.216	163	B315MXL	640.08	315	B505MXL	1026.16	505
B165MXL	335.28	165	B318MXL	646.176	318	B522MXL	1060.704	522
B166MXL	337.312	166	B323MXL	656.336	323	B535MXL	1087.12	535
B167MXL	339.344	167	B324MXL	658.368	324	B537MXL	1091.184	537
B169MXL	343.408	169	B328MXL	666.496	328	B540MXL	1097.28	540
B170MXL	345.44	170	B330MXL	670.56	330	B543MXL	1103.376	543
B171MXL	347.472	171	B332MXL	674.624	332	B546MXL	1109.472	546
B175MXL	355.6	175	B334MXL	678.688	334	B548MXL	1113.536	548
B177MXL	359.664	177	B337MXL	684.784	337	B571MXL	1160.272	571
B180MXL	365.76	180	B339MXL	688.848	339	B591MXL	1200.912	591
B184MXL	373.888	184	B340MXL	690.88	340	B592MXL	1202.944	592
B186MXL	377.952	186	B342MXL	694.944	342	B599MXL	1217.168	599
B190MXL	386.08	190	B343MXL	696.976	343	B612MXL	1243.584	612
B192MXL	390.144	192	B347MXL	705.104	347	B648MXL	1316.736	648
B194MXL	394.208	194	B350MXL	711.2	350	B694MXL	1410.208	694
